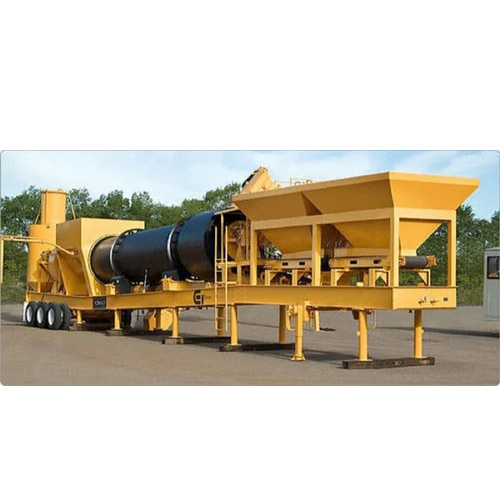

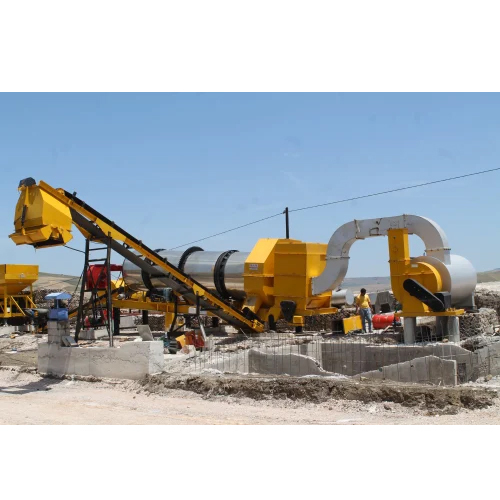

High-efficiency Alfa Asphalt Plant

Product Description

Top road construction equipment company Alfa Omega India manufacturer of asphalt drum mix plant, also known as a hot mix plant, is a continuous mixing plant used for producing hot mix asphalt. It heats aggregates, mixes them with bitumen and fillers in a rotating drum, and delivers a consistent asphalt mixture. Ideal for road construction, it ensures efficiency, uniformity, and high-quality output with minimal manual intervention.

Main Elements of an Asphalt Drum Mix Plant

An asphalt drum mix plant is made up of many integrative components working in harmonious concord to give good asphalt. Let us have a better understanding of the components of the plant:

1. Feed Aggregater:

• The aggregate feeder holds the aggregates in the chambers and feeds them in a controlled manner into the drum.

• It feeds the aggregates at a constant rate, which is an important requirement to ensure that the quality of the asphalt mix is maintained.

• The aggregates are fed evenly into the mixer. It will avoid inefficiencies and variations in the mix. Therefore, each batch is of top quality.

2. Bitumen Tank

• The bitumen tank holds and heats the bitumen, which is one of the major binding agents in the asphalt mix.

• This way, the bitumen is held at a constant temperature such that it will be available for mixing whenever required.

• This is a very essential component in that it ensures that bitumen mixes well with the aggregates, thus imparting bonding properties to the asphalt.


3. Control Panel

• The control panel is the heart of any drum mixing plant.

• It regulates the whole process of the plant from feeding aggregates to the mixing process, allowing the operators to monitor and control the plant functions.

• The control panel is either manual or automated, depending on the system. But always, it makes sure there is proper mixing and efficient production of asphalt.

4. Thermo Drum

• The thermo drum is the central component of the asphalt drum mix plant, where aggregates are continuously heated, dried, and mixed with bitumen to produce asphalt.
• It ensures uniform heating of aggregates, eliminating moisture and enhancing the quality of the final asphalt mix.
• The drums efficient design minimizes heat loss, leading to better fuel efficiency and reduced operational costs.
• The continuous mixing process inside the drum eliminates batch delays, making it ideal for large-scale road construction project

7. Pollution Control Unit

• The pollution control unit reduces dust, smoke, and emissions during asphalt production.
• It ensures compliance with environmental standards.
• The system includes baghouse filters, wet scrubbers, or cyclonic dust collectors.
• These components trap harmful particles and prevent air pollution.

High-Capacity Asphalt Production

This asphalt mixer is engineered to deliver between 45 and 60 tons per hour, making it well-suited for medium to large paving projects. The plant's steady output ensures timely completion of roadwork, while its automatic features streamline daily operations for enhanced productivity.


Robust Mild Steel Construction

Crafted using high-grade mild steel, the Alfa Asphalt Plant combines strength and longevity. Its structure withstands challenging worksite conditions, and the yellow finish increases safety by improving visibility. Maintenance is straightforward, thanks to the accessible design.


Reliable Warranty and Support

Alfa provides a one-year warranty with every unit, ensuring dependable performance and technical support for the initial operational period. As a prominent manufacturer, supplier, exporter, and distributor in India, Alfa delivers quality assurance and after-sales service to domestic and international customers.
